Product Description
Description:

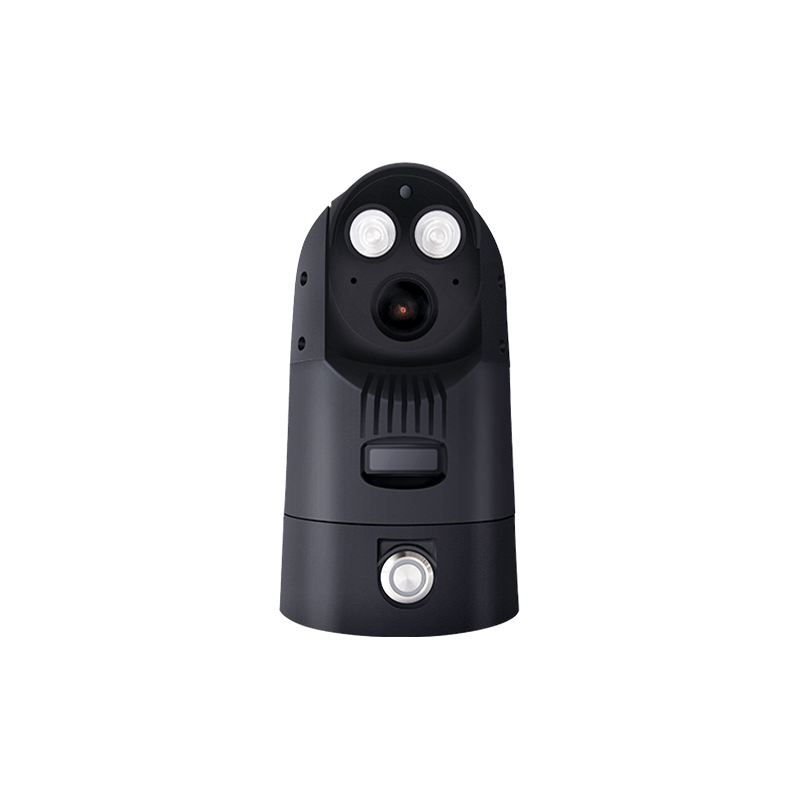

B40 is a super mini control ball, which has a volume reduction of about 80% compared to similar products in the market. It can be held in a single hand, with a weight reduction of about 40%. The base diameter is 105mm, the height is 180mm, and the body is only 0.75kg, making it more convenient to carry and install. It is equipped with a high-performance 360 ° pan tilt, supports 4x optical zoom, eight core processors, greatly improving the intelligence level of the device and enriching application scenarios.
Technical Parameter
| Model | B40 | |
| Screen | Screen | 1inch：display battery，PTZ, signal， WIFI status |
| Basic information
|
System | Android 11.0 |
| Sensor | 1/2.8″ F23 CMOS | |
| Minimum illumination | color [email protected]
Black and white [email protected] |
|
| IR CUT | Auto | |
| Focal length | 4.5~94.0mm | |
| Optical zoom | 4 times | |
| Resolution | 1920*1080P/720P 30fps | |
| White balance | Auto | |
| Exposure compensation | EV-3.0~EV+3.0 | |
| Horizontal rotation angle | 350°，speed 0.05°～100°/s | |
| Vertical rotation angle | -20°～+90°，speed 0.05°～100°/s | |
| Preset position | 255个，4 cruise scans | |
| Sim | Dual sim | |
| Storage | 256G | |
| Internal memory | DDR：2GB，EMMC：16GB | |
| Internet | TDD-LTE Band 38/39/40/41
FDD-LTE Band 1/3/5/8 WCDMA Band 1/8 GSM Band 8 |
|
| Bluetooth | BT2.1+EDR/BT4.2 | |
| WIFI | 2.4GHz 802.11.b/g/n | |
| Video | MP4/MKV H.264/H.265 | |
| Audio | MIC 2W speaker | |
| Audio format | AAC/G711 | |
| protocol | GB28181, ONVIF etc | |
| GPS | GPS/BEIDOU | |
| GEO-fence | Support alarm for prohibiting entry and exit | |
| Language | Multiple | |
| Waterproof | IP66 | |
| USB | USB2.0（TP-C） | |
| B/S、C/S、android APP | support | |
|
Working environments
|
Work temperature | -25℃~70℃ |
| Work humidity | ＜90% | |
| Battery | Battery | 3000mAh 12V |
| Charging time | 3 hours | |
| Working time | ＞6 hours | |
| Others
|
Weight | 950g |

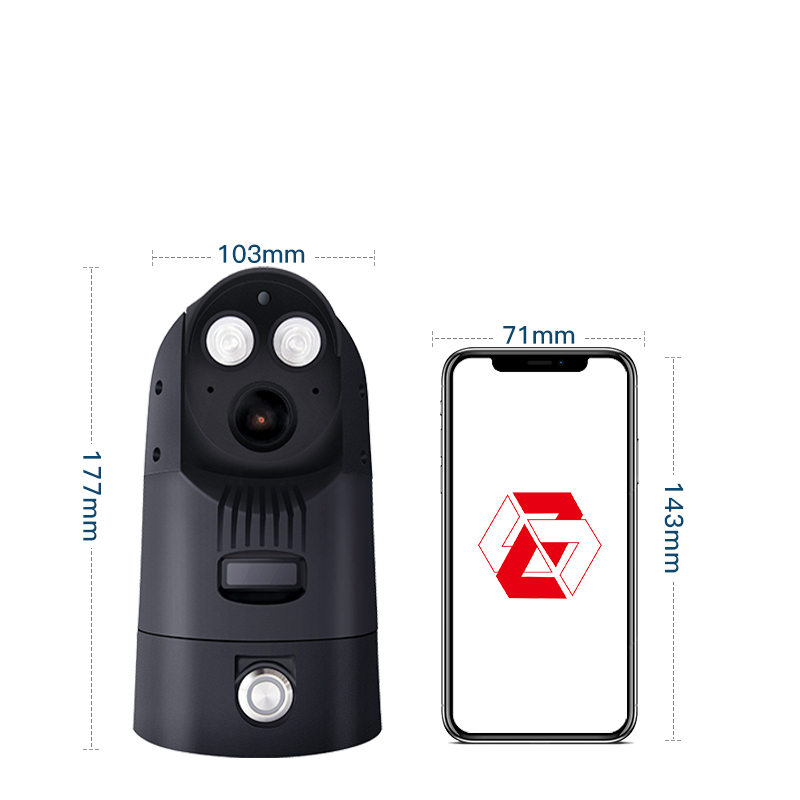

| Size | diameter 105mm; height：180 mm | |
| packing | Waterproof and shockproof emergency box | |
| accessories | Power adapter * 1, data cable * 1, anti shake bracket * 1, fixed iron plate * 1, certificate of conformity/warranty card * 1 | |
