Product Description
Description:

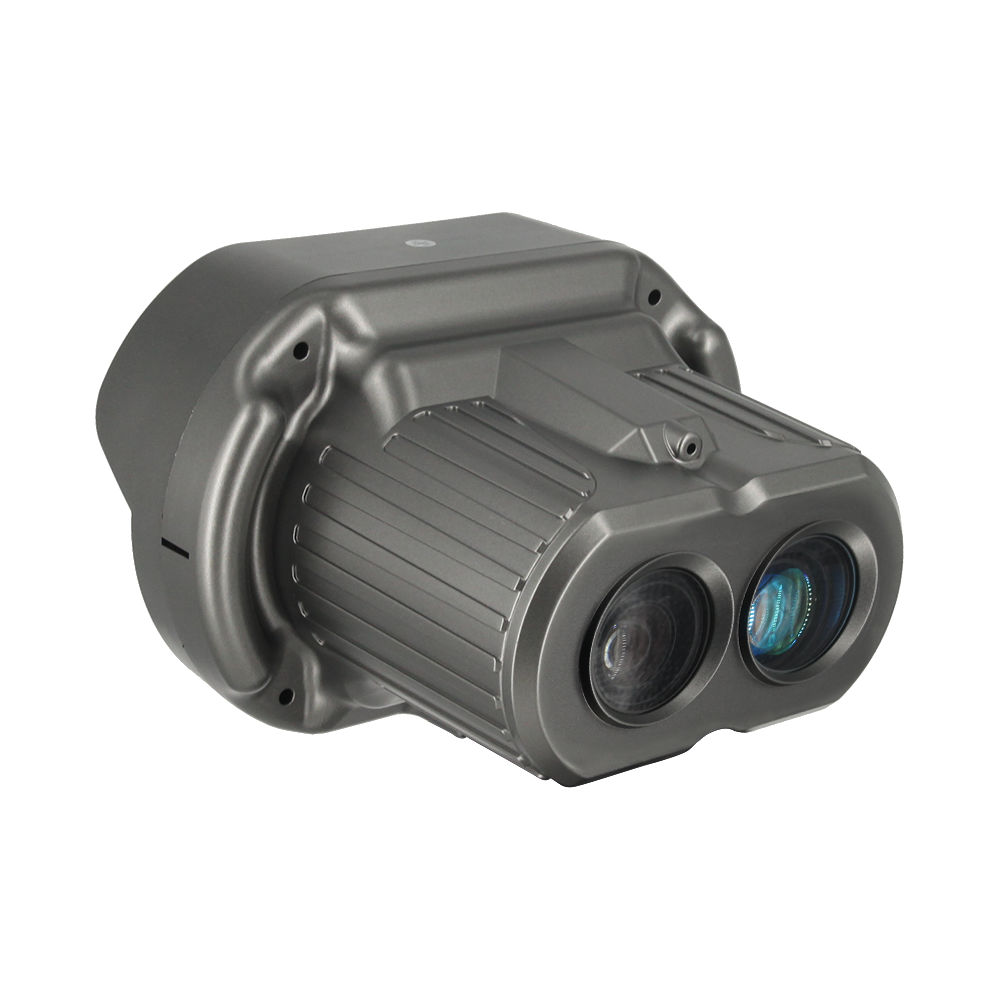

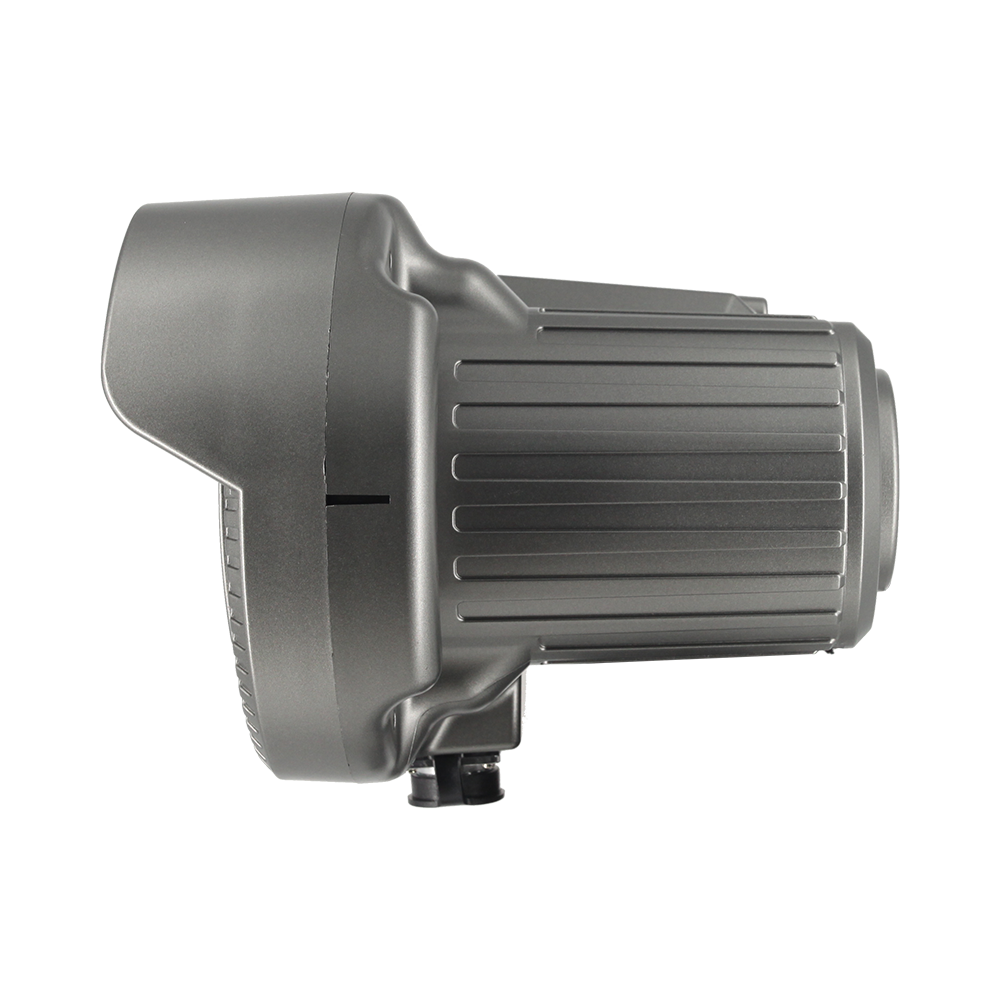

The 5G color night vision camera is specially designed for the needs of ultra-high definition monitoring at night. It supports real-time transmission through the public network, including 5G and 4G functions, and is equipped with 16TOPS computing power, 7-inch multi-point touch screen, and other functions. It adopts a 20x optical zoom, with a night vision distance of up to 1000 meters.
Technical Parameter
| Model | D05 |
| Operating System | Android 12 system |

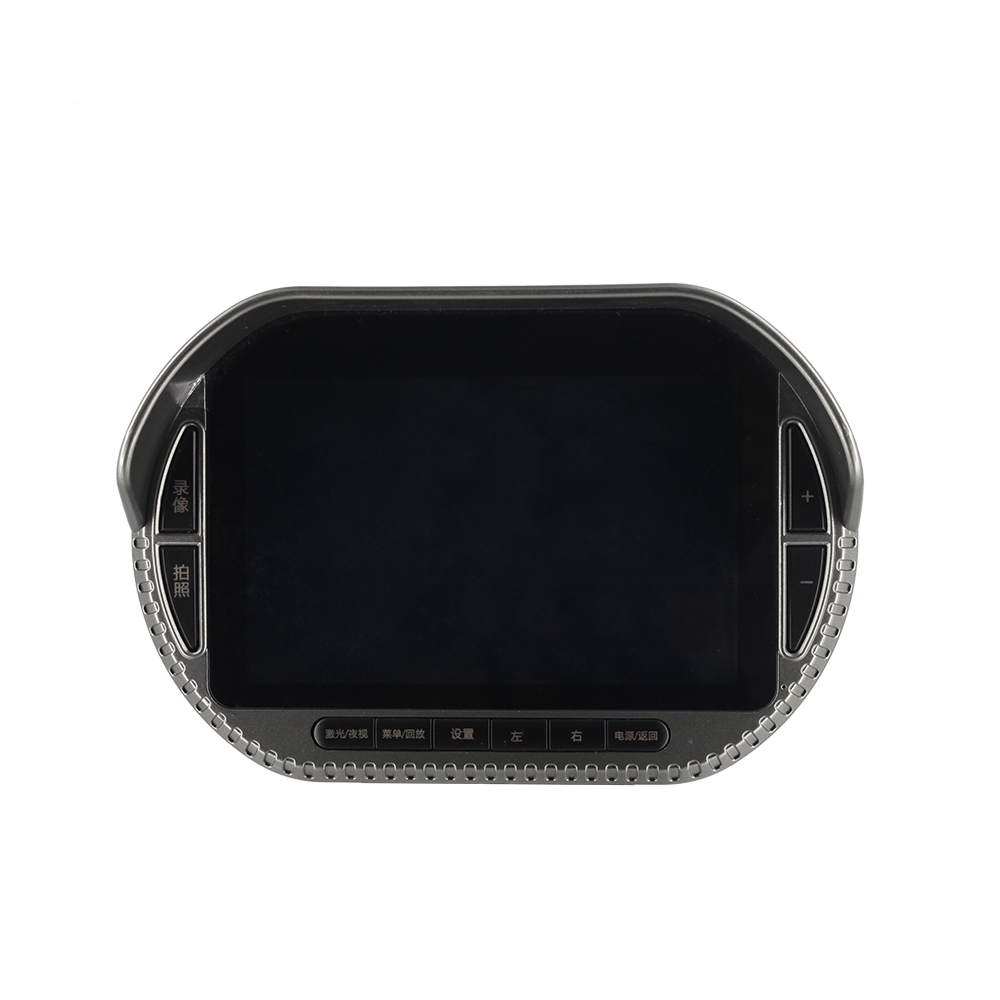

| Screen | 7.0 inch multi-touch screen |
| Photosensitive element | 1/1.8” SENSOR |
| Recording method/speaker | Built-in MIC |
| Voice options | Support Chinese/English/Multi-language |
| IR | Laser infrared light, automatic IR function |
| Lens focal length | F=6.7mm-134.5mm |
| Internal memory | 4GB LPDDR4X+64GB UFS |
| Internet | 5G/4G carrier free
Sub-6 n41,n78,n79 SA&NSA-n1,n3,n5,n8,n28（only SA） LTE FDD B1/3/5/8 LTE TDD B34/38/39/40/41 WCDMA B1/8 |
| Bluetooth | 5.2 DR/EDR/BLE |
| WIFI | 802.11 a/b/g/n/ac/ax,（2X2 MIMO） 2.4G/5G |
| Optical multiple/aperture value | 20 times |
| Digital zoom/zoom | 18 times/auto zoom |
| LED size | 7.0inch |
| Display Ratio | 16:09 |
| Brightness | 1000cd/m2 |
| Resolution/frame number | 4K/30fps |
| Storage | Maximum support TF card 128G |
| Video format | MP4/MKV |
| Video encoding | (H.264/H.265) |
| External power supply | Support |
| battery | Built-in lithium battery 8000 mAh |
| Charging time | 12 hours |
| Storagetemperature
working temperature |
-30℃~80℃/-10℃~60℃ |
| Size | 220mm*185mm*150mm |
| Weight | 1.8KG |
| Laser Power | 3W/5W optional |
| Connector | Built-in USB/HDMI connector |
| Night/Day vision distance | 1KM/2KM |
| Thermal Imaging parameters（optional） | Uncooled infrared focal plane detection
Pixel：320X240 Viewing angle: 45-50°6.52mm f1.18 Minimum focal length: 0.5 meters Thermal sensitivity: 0.1 ℃ Frame rate: 9Hz; wavelength range: 8-14um Measuring range: -10 to+330 ℃ Measurement accuracy: -+ 0.5℃(32–42) ℃ + -2 degrees: 100 ℃ + -1% above 100 ℃ |
| Other info | 4G Carrier free
Independent light sensing control Remote control Shockproof pedestal |
