Product Description

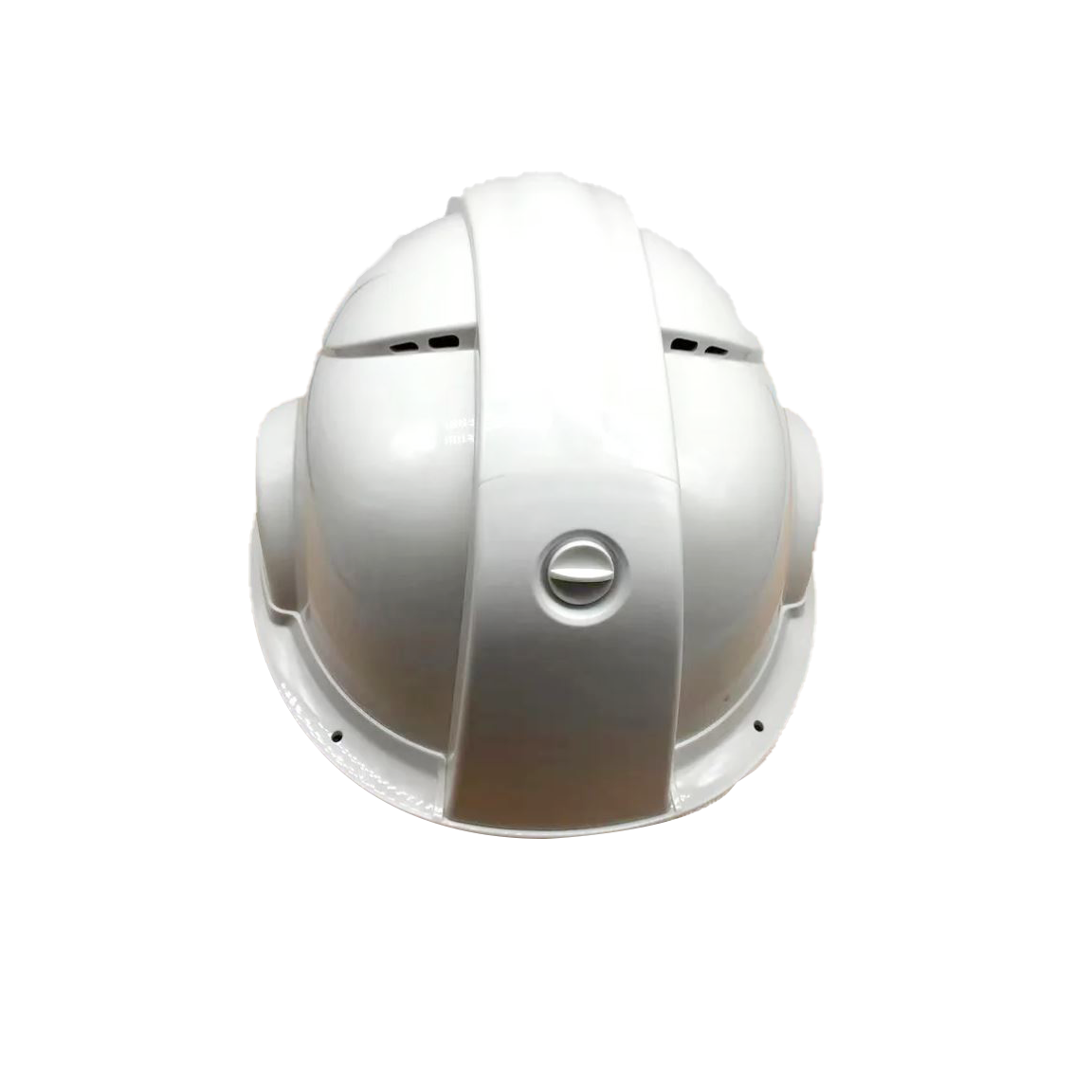

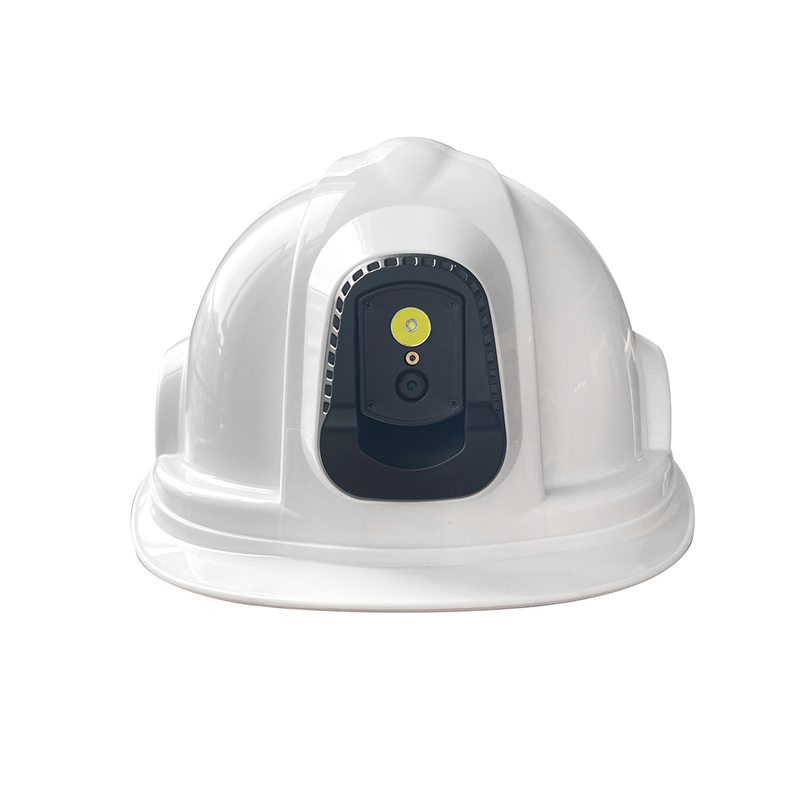

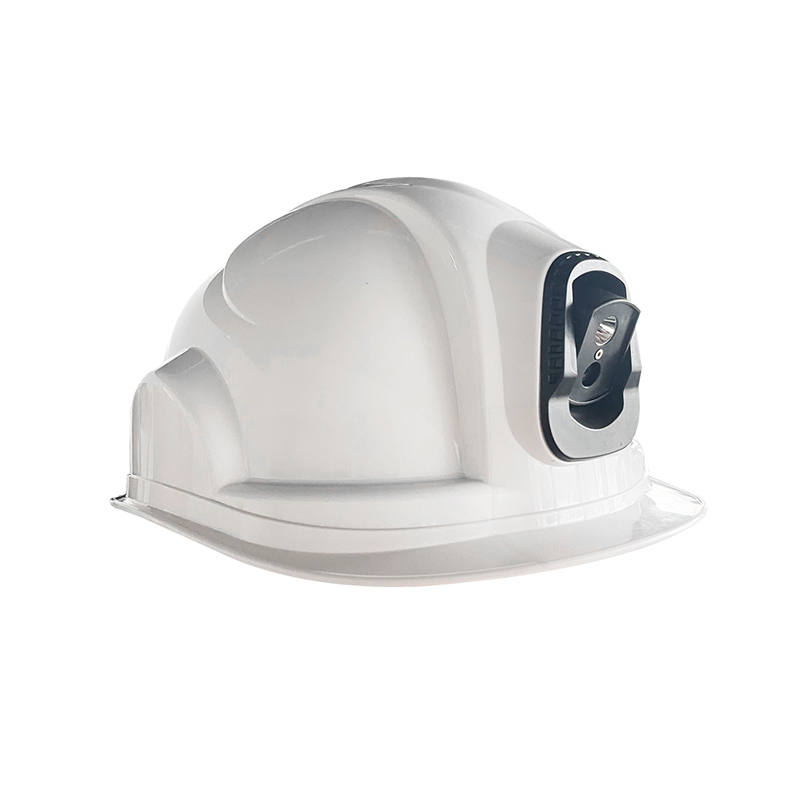

This safety helmet is based on the W20 and features adjustable lens direction. It utilizes the Internet of Things, perception sensors, high-definition cameras, and features real-time video, recording, real-time intercom, indoor UWB positioning and other functions.
UWB high-precision centimeter level positioning. Precision up to 10cm
Technical Parameters:
2D positioning accuracy: ± 15CM in 2D mode. Communication distance: 200 meters
6000mAh rechargeable lithium battery. Battery charging time: 3 hours.
Suggest configuring the refresh frequency range for dynamic label operation (default 10Hz): 0.1Hz~20Hz
Suggest configuring the refresh frequency range for static operation of labels to 155mm
(Default 0.1Hz): 0.05Hz~20Hz

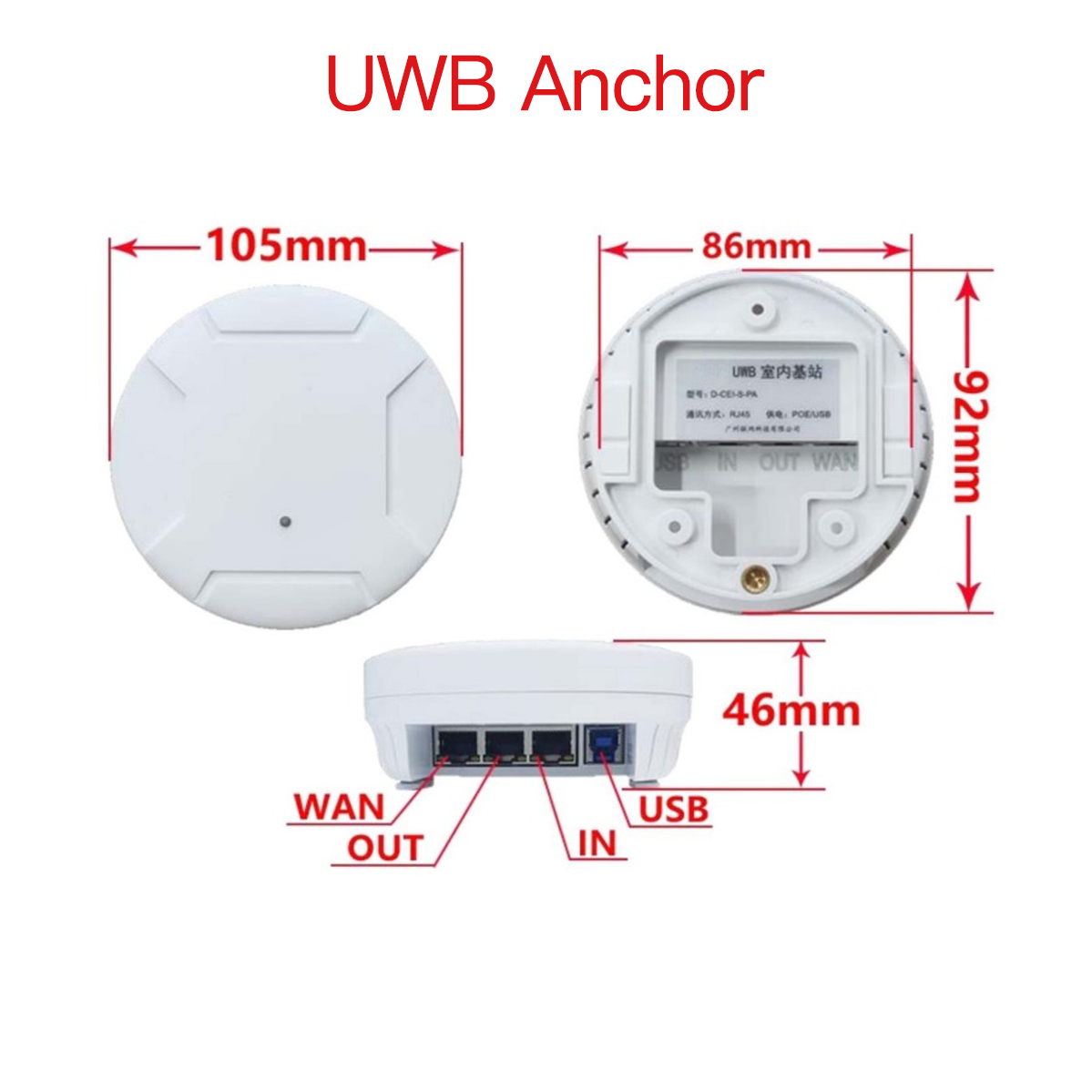

UWB Anchor Parameters:
Positioning accuracy: 15CM
Communication distance: 200 meters
Communication speed: 6M8
Power supply method: POE, serial USB, or DC5V power supply (choose one from three, not recommended to use multiple methods at the same time) Label capacity: In a single area, it can stably accommodate 4-5 labels at 10Hz, and can stably accommodate 40-50 labels at 1Hz
Weight: 127.1g (excluding accessories)
Indicator light: Blue light flashing indicates normal operation status
radio frequency: UWB 3.75GHz~4.25GHz
power: 20.5dBm/MHz
data interface: RJ45
power supply: POE IEEE 802.3af/DC 5V/ Serial USB
Rated power: <5W
Coverage: Maximum 200m (stable communication)
working temperature: -20℃~65C℃
